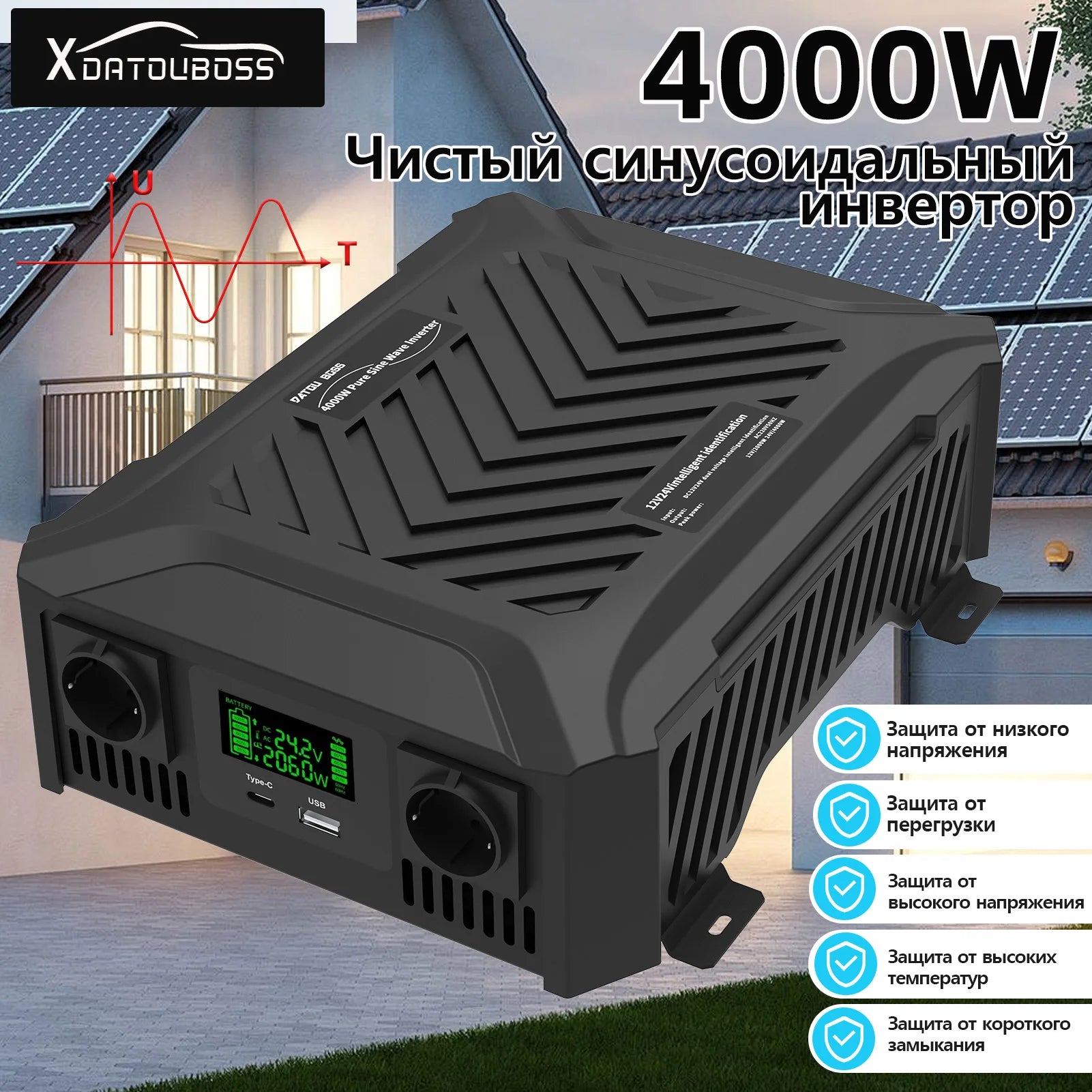

DATOU BOSS Pure Sine Wave Inverter 12v 24v 1200w 2300w Two Voltages Support dc ac Inverter 12v to 220v EU Peak Power 4000W
DATOU BOSS Pure Sine Wave Inverter 12v 24v 1200w 2300w Two Voltages Support dc ac Inverter 12v to 220v EU Peak Power 4000W
Couldn't load pickup availability

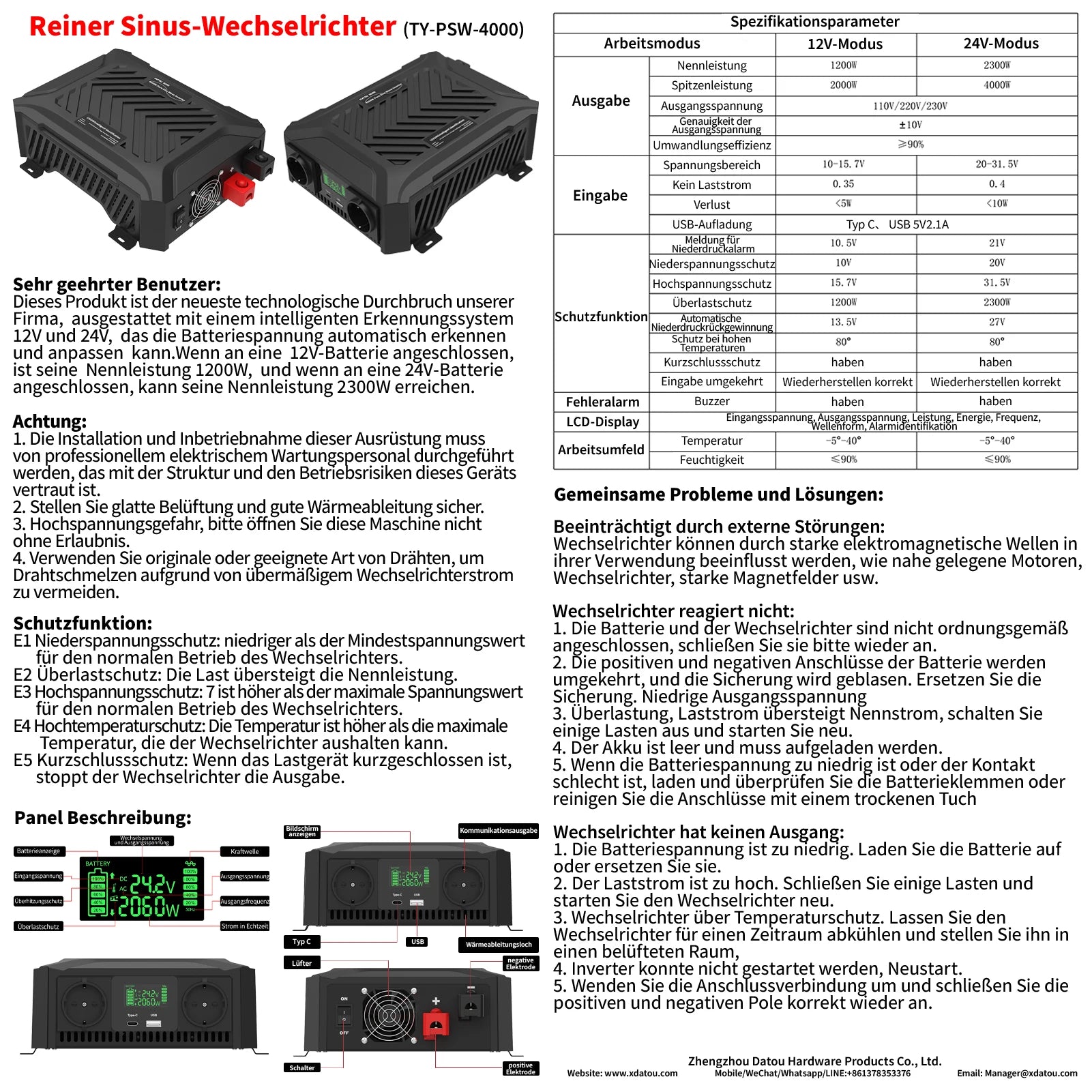

SPECIFICATIONS
Brand Name: DATOUBOSS
Certification: CE,FCC,pse
Choice: yes
Conversion Efficiency: 0.9
High temperature protection: 80℃
High voltage protection: 15.7V/31.5V
Hign-concerned Chemical: None
Low pressure alarm: 10.5V/21V
Low voltage automatic recovery: 13.5V/27V
Low voltage protection: 10V/20V
Origin: Mainland China
Output Frequency: 50Hz
Output Voltage: AC 220V±10%
Overload protection: ≥1200W/2300W
Short circuit protection: Yes
Socket Type: europe
USB: Type-C USB5V2.1A
Voltage range: 10-15.7V/20-31.5V
Dear user:

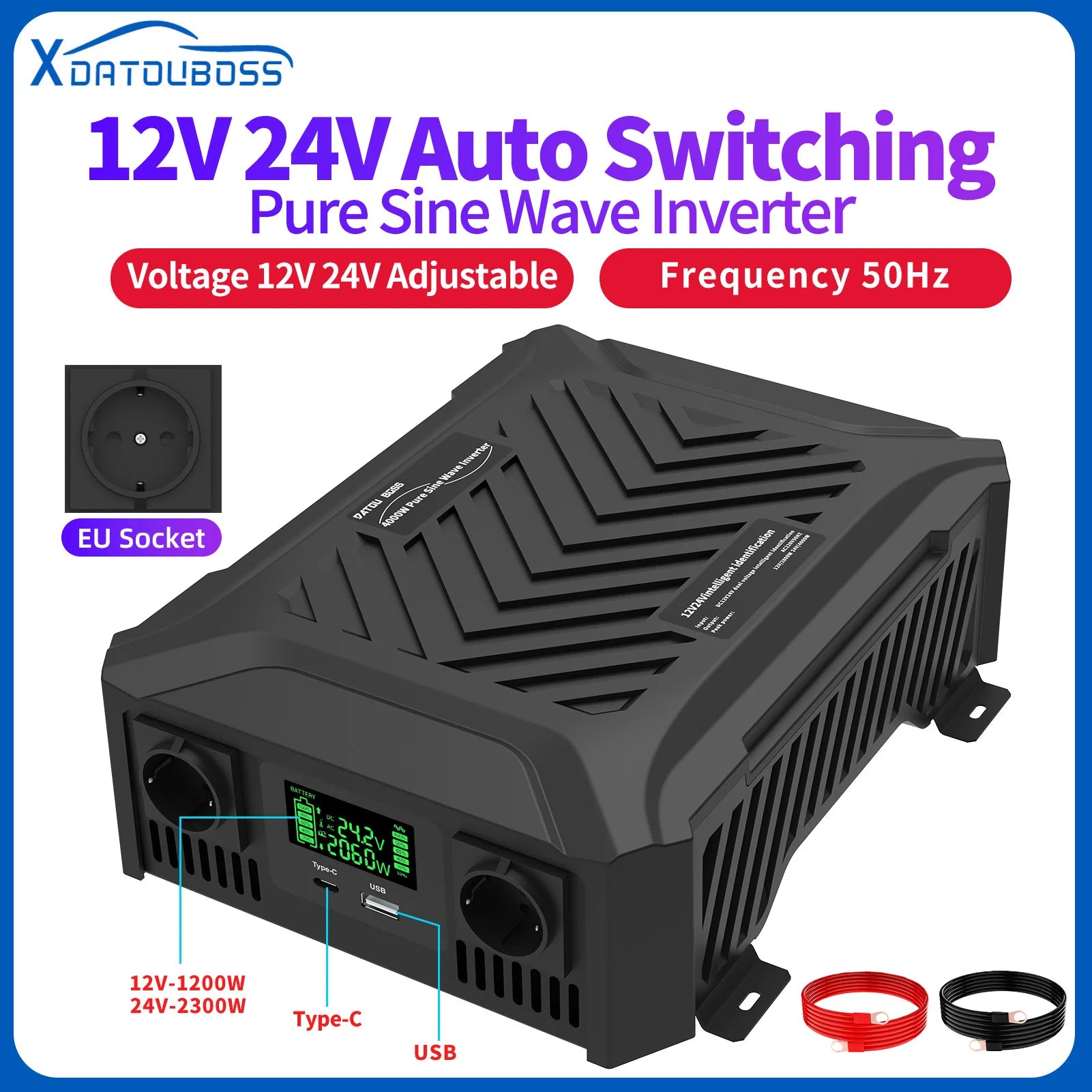

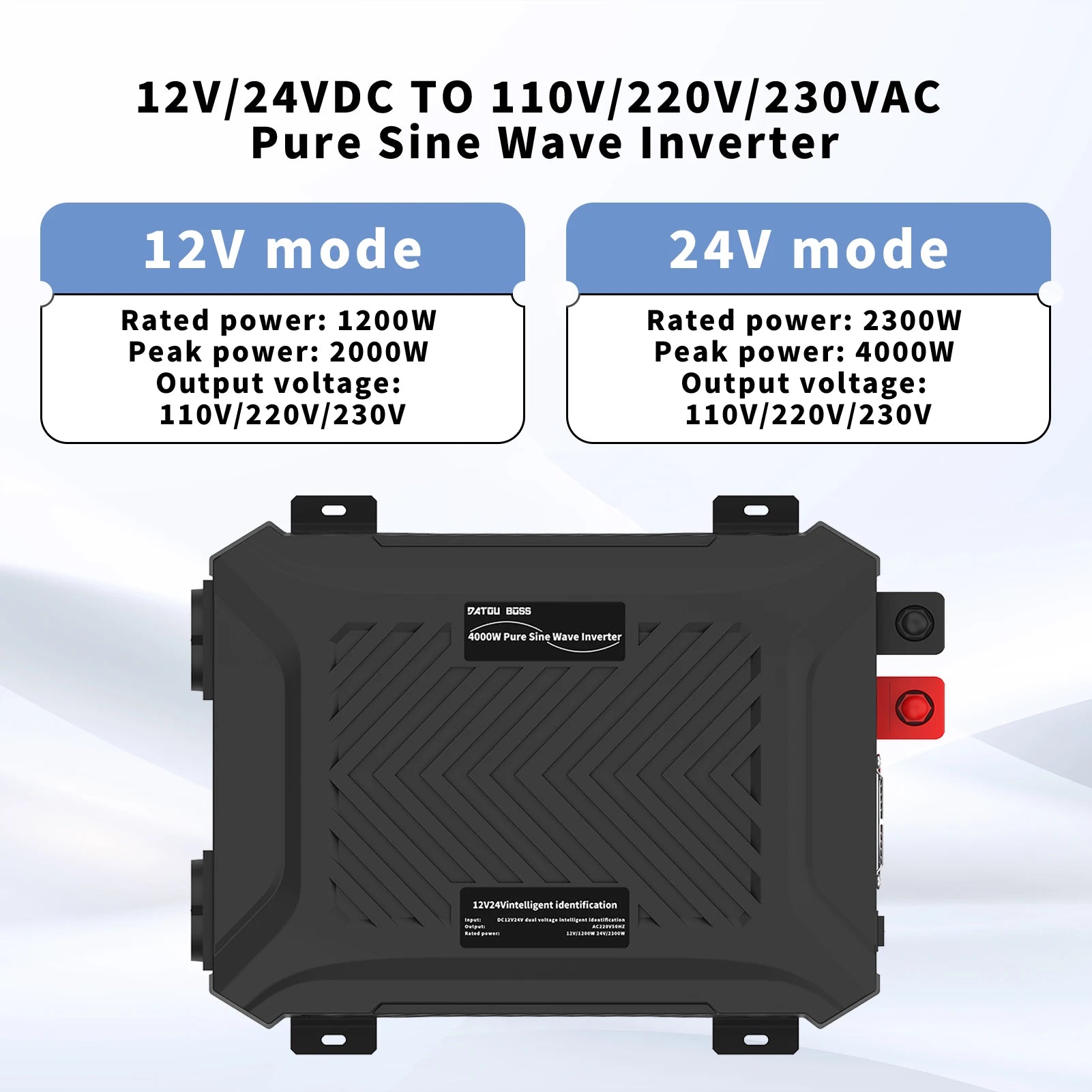

When connected to the 12V battery, its rated power is 1200W, when connected to the 24V battery, its rated power can reach 2300W.

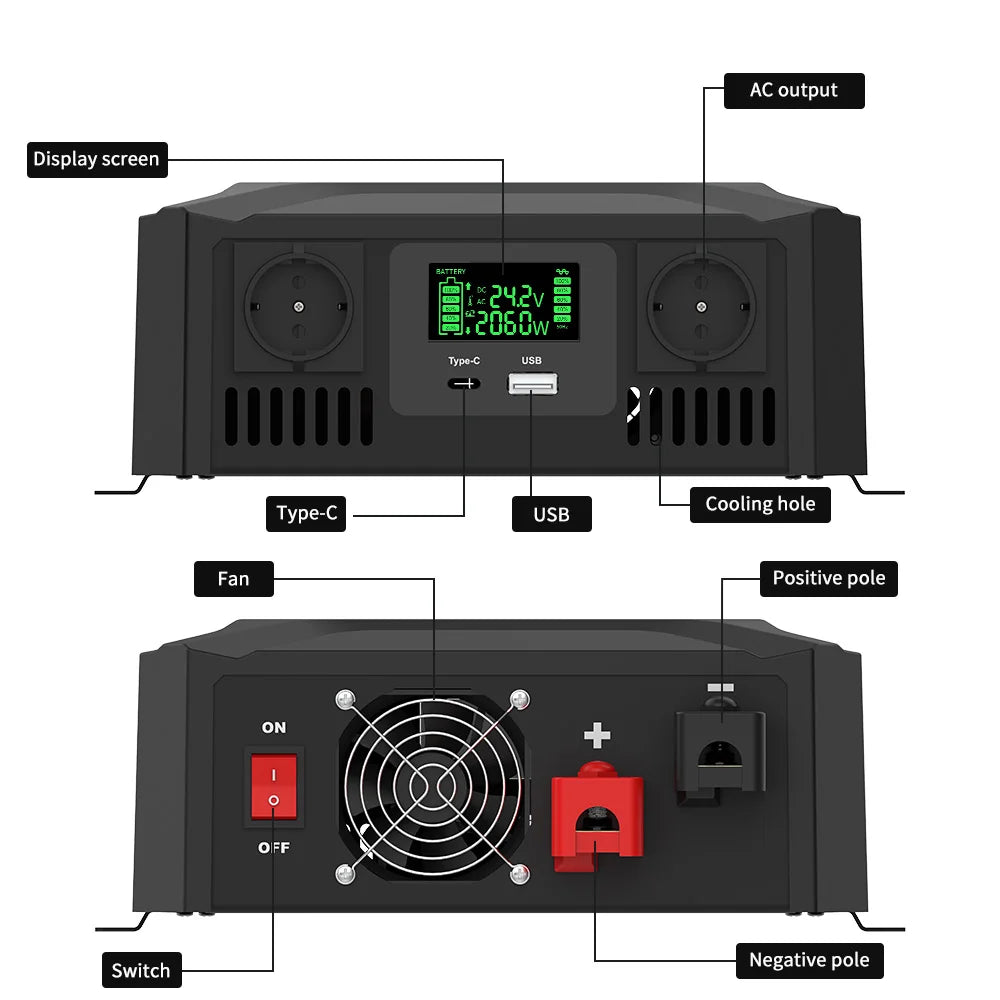

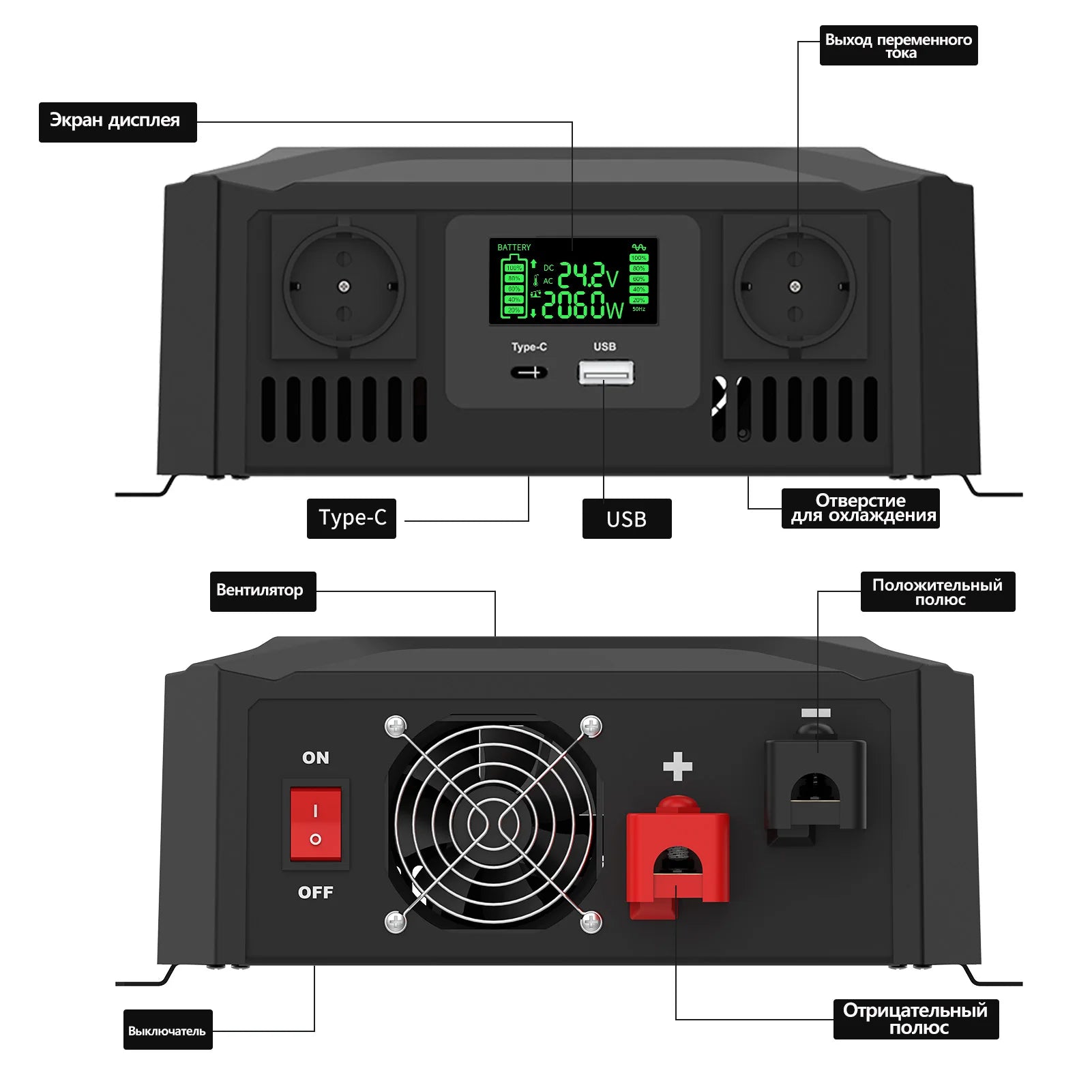

Configured with Type C, USB interface.
EU standard socket X 2
Reminder: Dear buyer!
1200W inverter, the continuous (rated) power is 1200W, and the peak power is 2000W.
2300W inverter with continuous (rated) power of 2300W and peak power of 4000W.
We should refer to the continuous power when purchasing an inverter, which refers to the output power that allows long-term continuous operation, while the peak power only exists at the moment when the appliance is started.)
If you have any questions before purchasing, or if there are various problems during the use of the inverter, you can contact our customer service staff at any time, and we will reply quickly and solve various problems for you from the most professional perspective. Thank you for your understanding!
I wish you all a happy life and good health!
Feature
1. Pure sine wave inverter, intelligent filtering, does not interfere with electrical appliances, and protects electrical appliances. The conversion efficiency is high more than 90%, and the power consumption of the product itself is low, which can greatly extend the battery life.
2. Buzzer reminder. Once the protection function of the inverter is triggered, the inverter will immediately shut down the power supply, the load will enter the protection mode, and the buzzer will remind people.

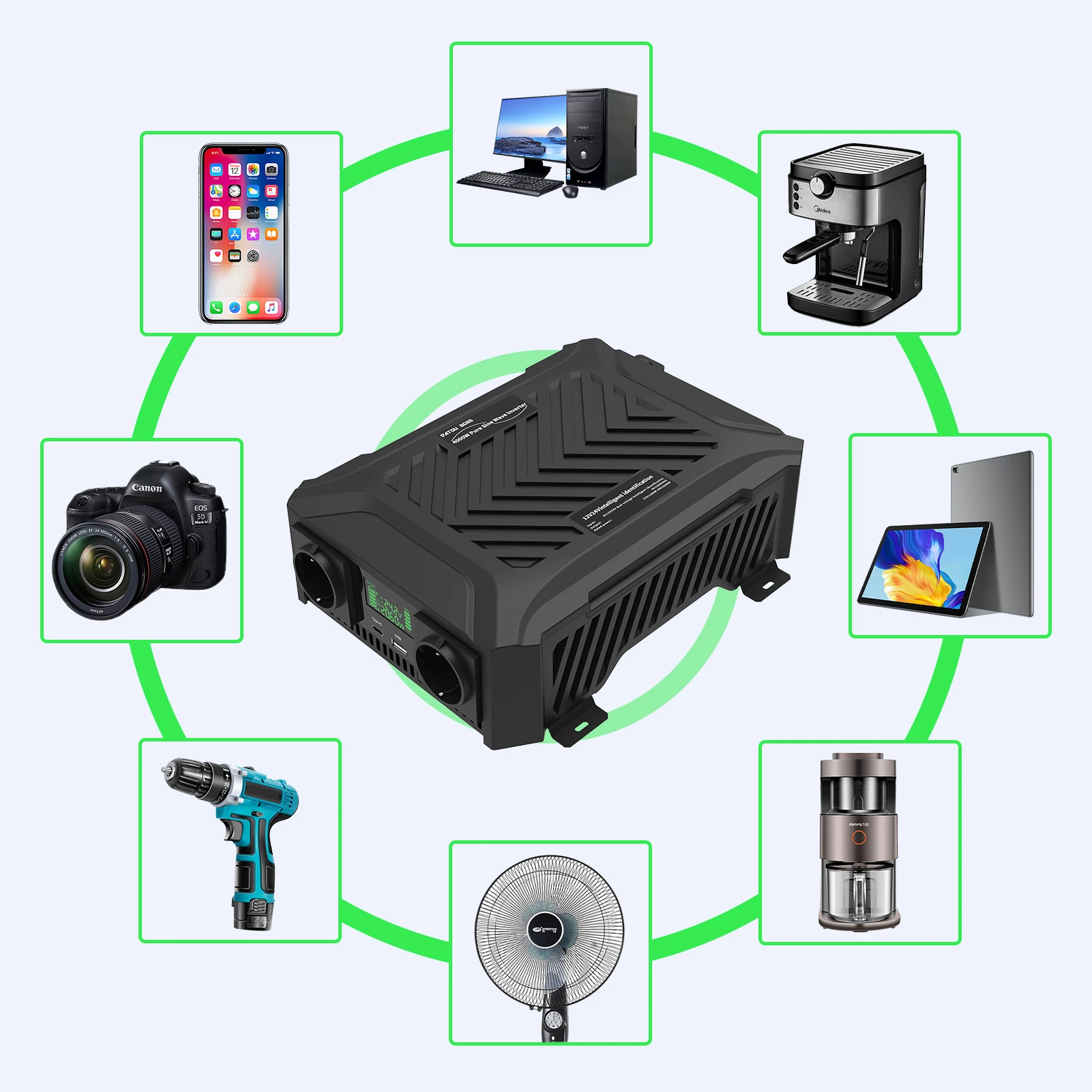

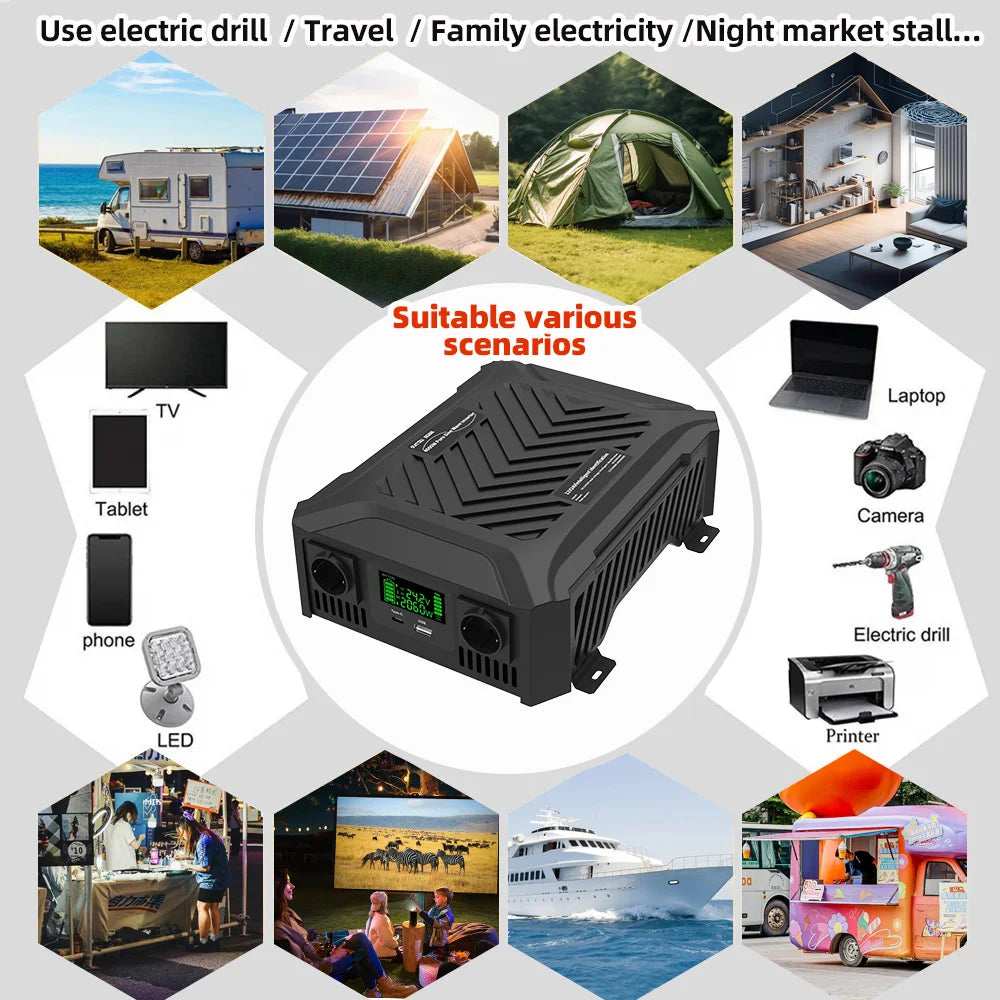

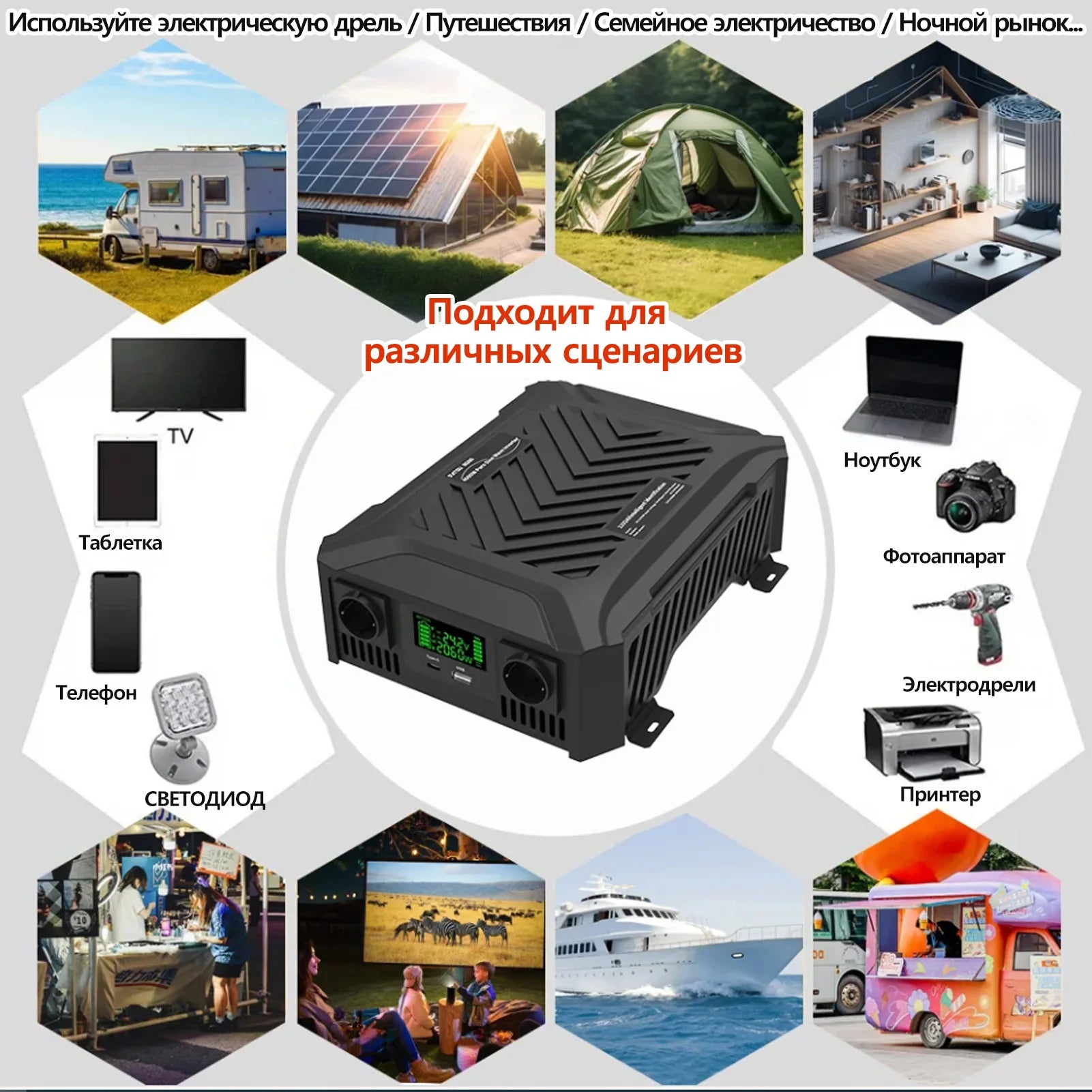

3. Almost all electrical appliances can be used, including TV/LED lights/LCD monitors, especially inductive load appliances such as refrigerators, freezers, and induction cookers.

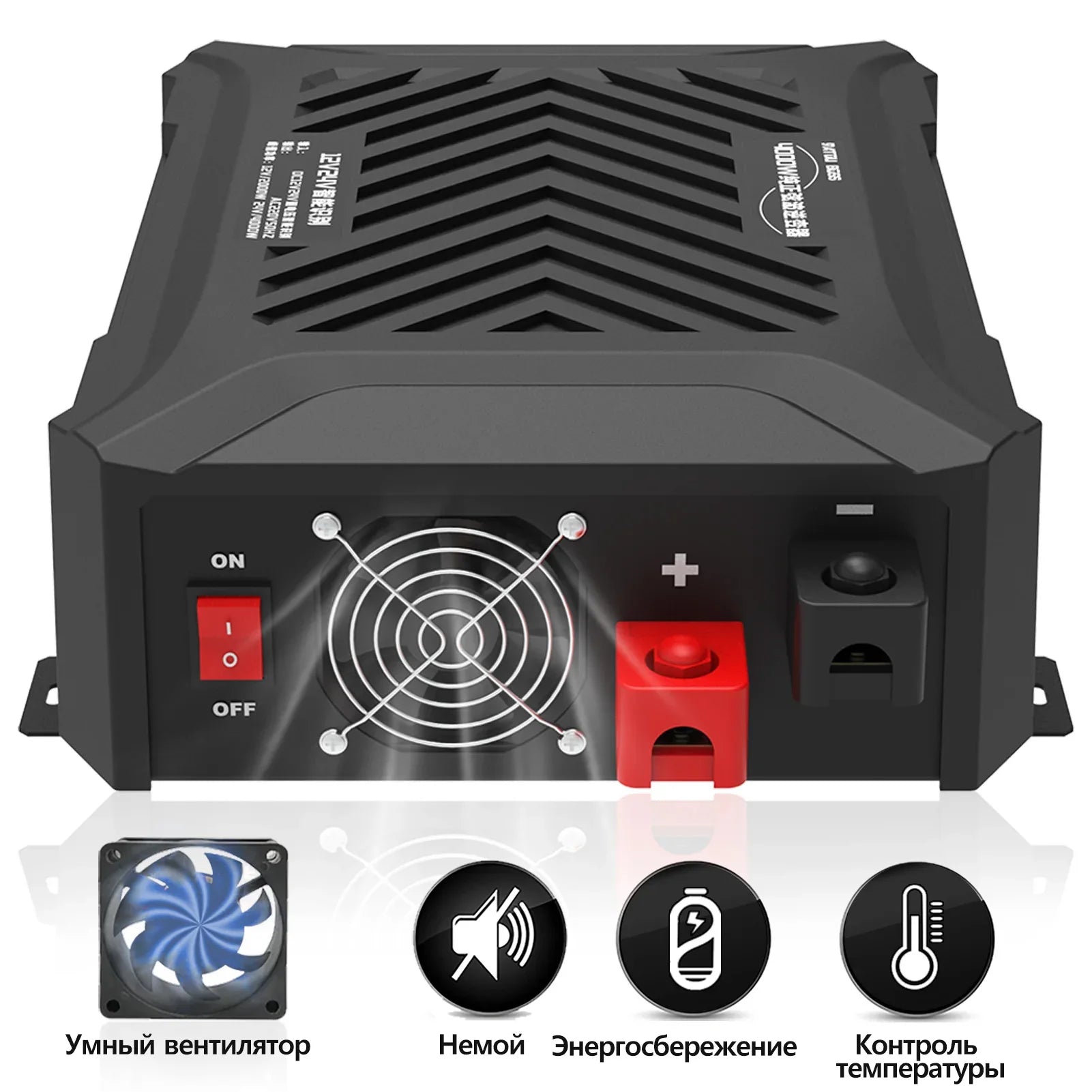

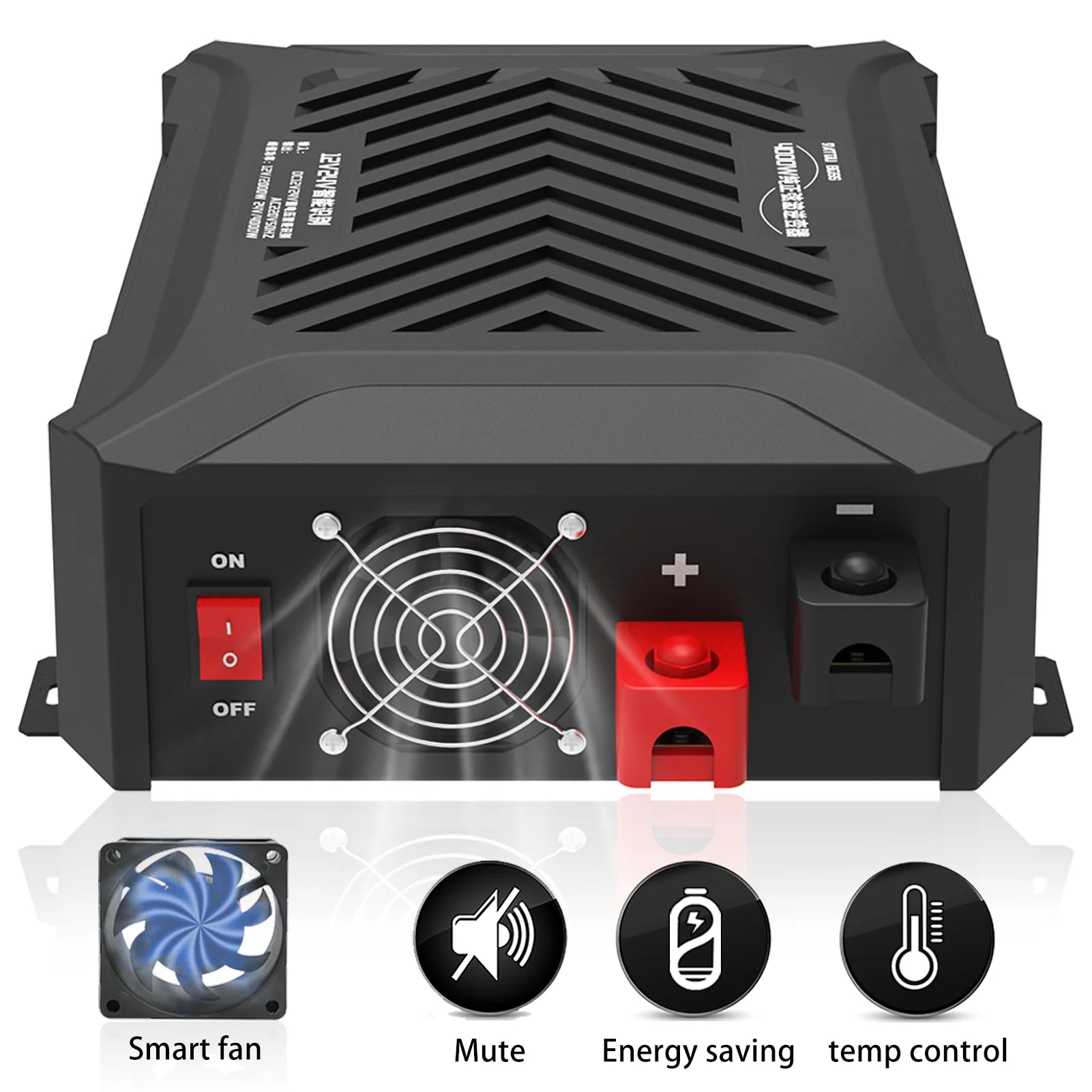

4.With one air ducts, high-quality heat sink for heat dissipation, good thermal conductivity, can quickly reduce the temperature of components, and ensure long-term work
Adequate Working Capacity
The power we marked is the power that the inverter can actually achieve and can run for a long time. You can give full play to its maximum performance 100% for a long time, which is a guarantee for the product
Product Information
Type: Pure Sine Wave Inverter
Output Current Waveform: Pure Sine Wave
Continuous Power: 1200W/2300W
Peak Power:2000W / 4000W
Input Voltage: 12V / 24V Automatic identification of battery voltage
Output Voltage: 220V-240V
Output Frequency: 50HZ (Default) / 60HZ (Optional)
Plug Specifications: EU
Packing List
1 x Pure Sine Wave Power Inverter
1 x User Manual

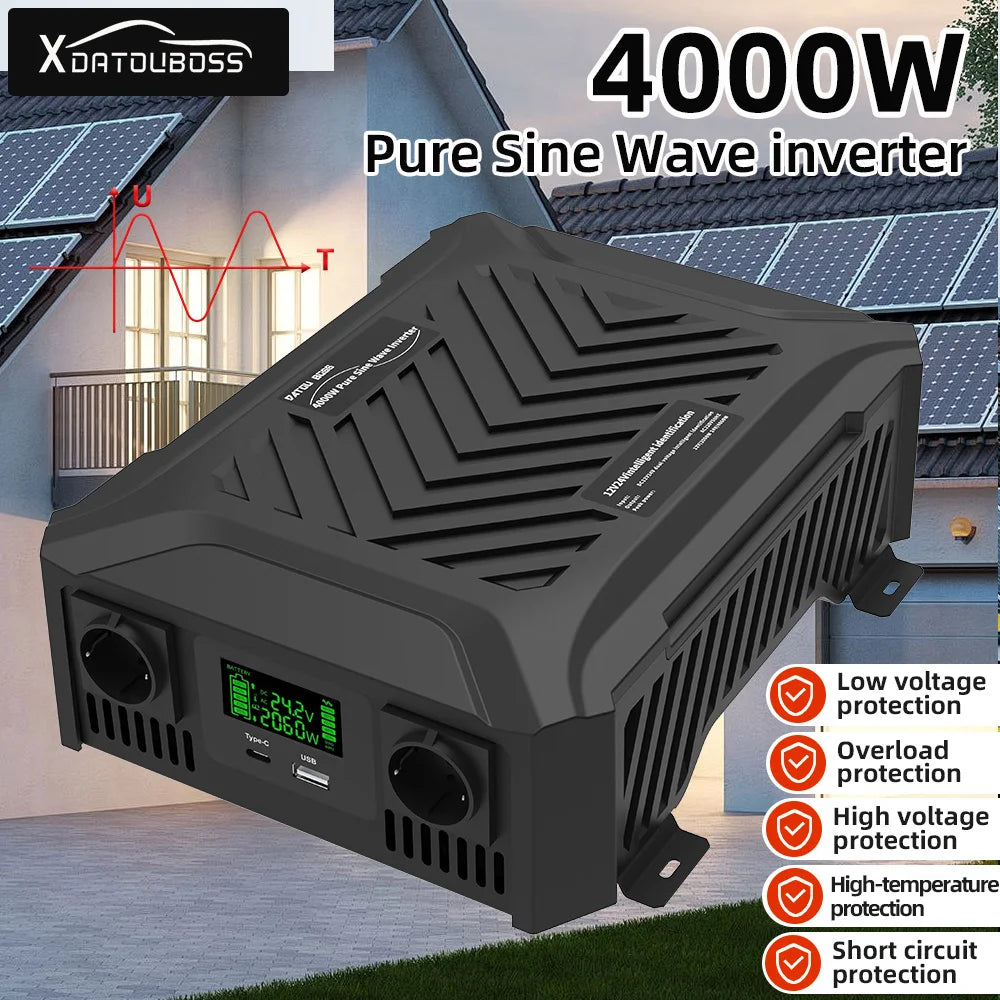

Six Protection Functions
Positive and negative reverse polarity protection: by blowing the internal fuse
High temperature protection: When the temperature is higher than 85°C, the AC output will be turned off, and the alarm will sound 5 times/stop for 5 seconds (continuous mode). Automatically return to normal when the temperature is lower than 75°C
Overload protection: When the load is greater than 110%~130%, the AC output will be turned off after the alarm lasts for 15 seconds (the reset switch is restored). If the load is greater than 130%~150%, the alarm lasts for 5 seconds and then closes the AC output, (the reset switch is restored). When the load is greater than 150%%, the AC output will be turned off after 2 seconds, (the reset switch will be restored)
Low voltage protection: 12V model low voltage protection is 10V±4%, 24V model low voltage protection is 20V±4%. When the low voltage protection is triggered, the inverter will shut down automatically
High voltage protection: 12V model high voltage protection is 15V±4%, 24V model high voltage protection is 30V±4%. When the high voltage protection is triggered, the inverter will automatically shut down
Short circuit protection: turn off the device within 2 seconds (need to reset the switch to recover)
Thanks for your trust ! If you are satisfied with the product, please take time to tell us . If not , please tell us immediately that we will deal with it as soon as possible . Each of your trusts is the driving force of our struggle. Thanks a lot !
Order and give text praise, the next purchase we will give you an extra discount .
Protection Function:
E1 Low voltage protection: Lower than the minimum voltage for normal operation of the inverter.
E2 Overload protection: The load exceeds the rated power.
E3 High voltage protection: higher than the inverter normal operation of the maximum voltage value.
E4 High temperature protection: The temperature is higher than the maximum temperature that the inverter can withstand.
E5 Short circuit protection: the load electrical appliance is short circuit, and the inverter stops output.
Attention:
1. The installation and commissioning of the equipment shall be carried out by professional electrical maintenance personnel who are familiar with the structure and operation risks of the device.
2. Ensure smooth ventilation and good heat dissipation.
3. High pressure is dangerous, please do not open the machine at will.
4. Use the original or appropriate type of wire to avoid the wire being blown because the inverter current is too large.
