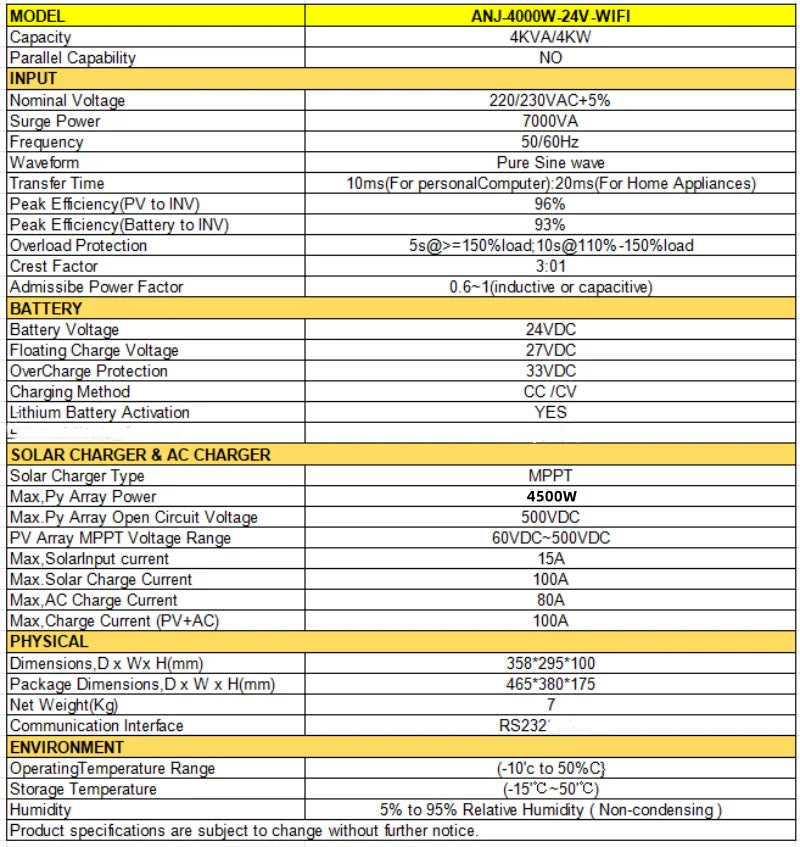

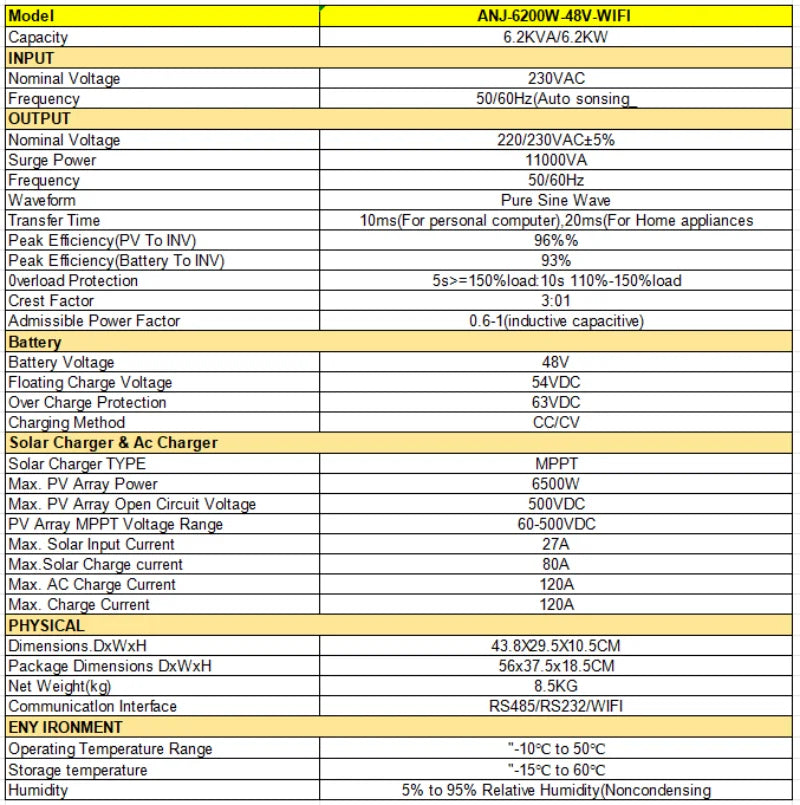

SPECIFICATIONS

Acceptable Voltage Range: 170-280VAC(For personal Computer);90-280VAC(For Home Appliances),90-280VAC(For home appliances)

Brand Name: ANENJI

Certification: CE

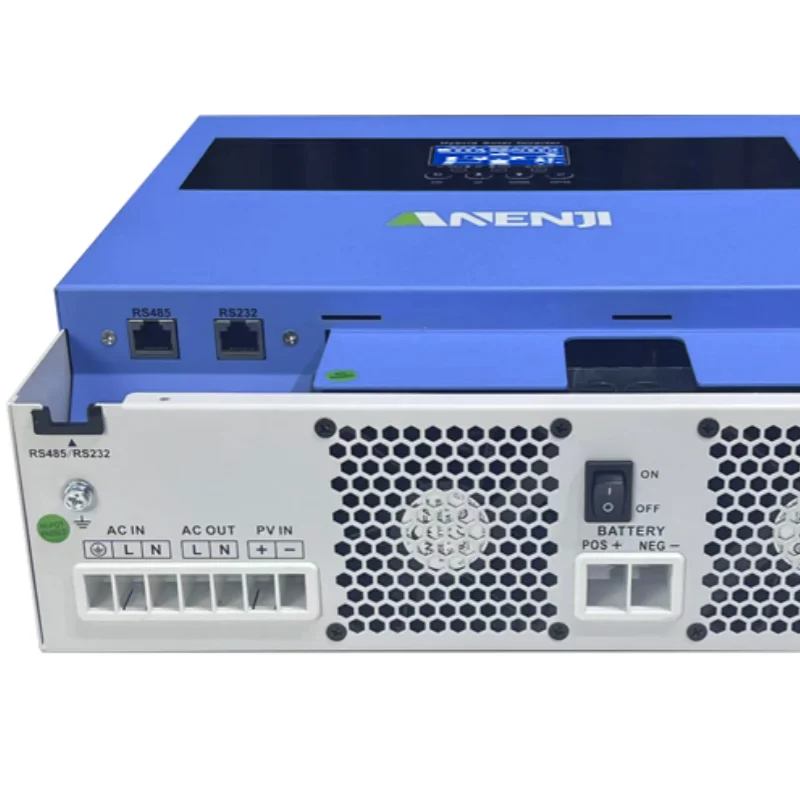

Communication interface: RS232/WIFI/RS485

Feature1: Supports works without batteries

Feature2: Fit to Solar panel

Frequency Range: 50/60HZ Auto sensing

Hign-concerned Chemical: None

Humidity: 5% to 95% Relative Humidity (Non-condensing)

Is Smart Device: YES

MPPT Range operation Voltage: 60-500VDC

Maximum Efficiency: 98%

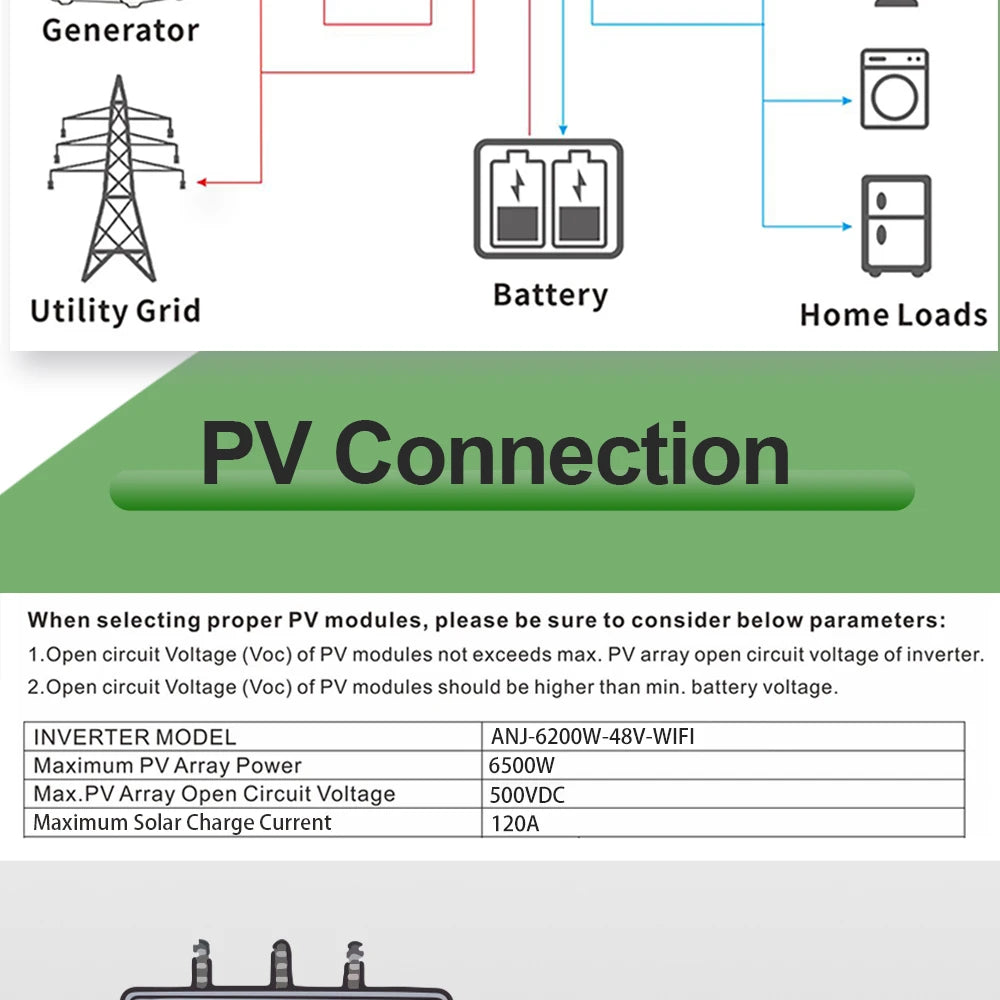

Maximum PV Array Open Circuit Voltage: 500VDC

Maximum PV Array Power: 4kw for 4500w / 6.2kw for 6500w

Maximum Solar Charge Current: 4kw for 100A / 6.2kw for 120A

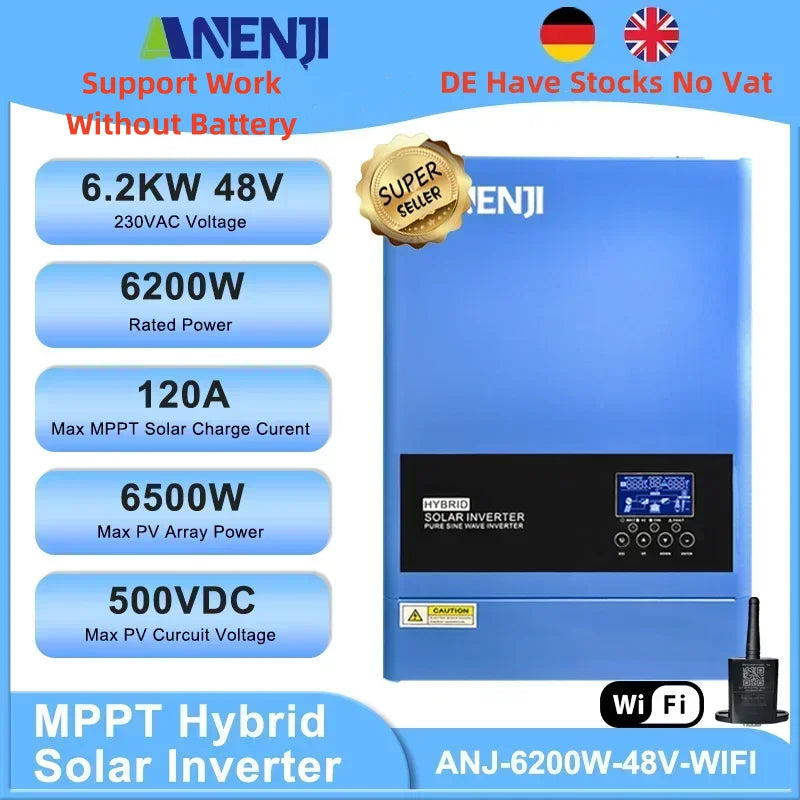

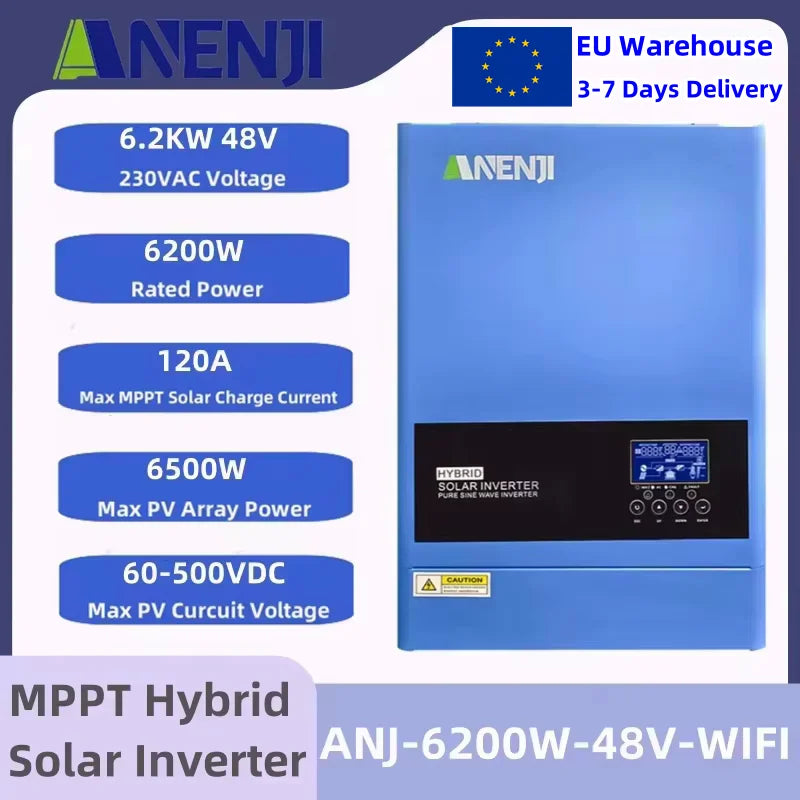

Model Number: ANJ-4000W-24V WIFI / ANJ-6200W-48V-WIFI

Operation Temperature: -10℃-55℃

Origin: Mainland China

Output AC Voltage Regulati: 230VAC±5%

Output Current: 4kw for 100A / 6.2kw for 120A

Output Frequency: 50/60HZ

Output Power: 1 - 200KW

Output Type: SINGLE

Size: 450X350X160MM

Storage Temprature: -15℃-60℃

Transfer Time: Transfer Time,20ms(For Home Appliances)

Wave Form: Pure sine wave

Weight: 4KW 7kg / 6.2KW 11KG

is_customized: Yes

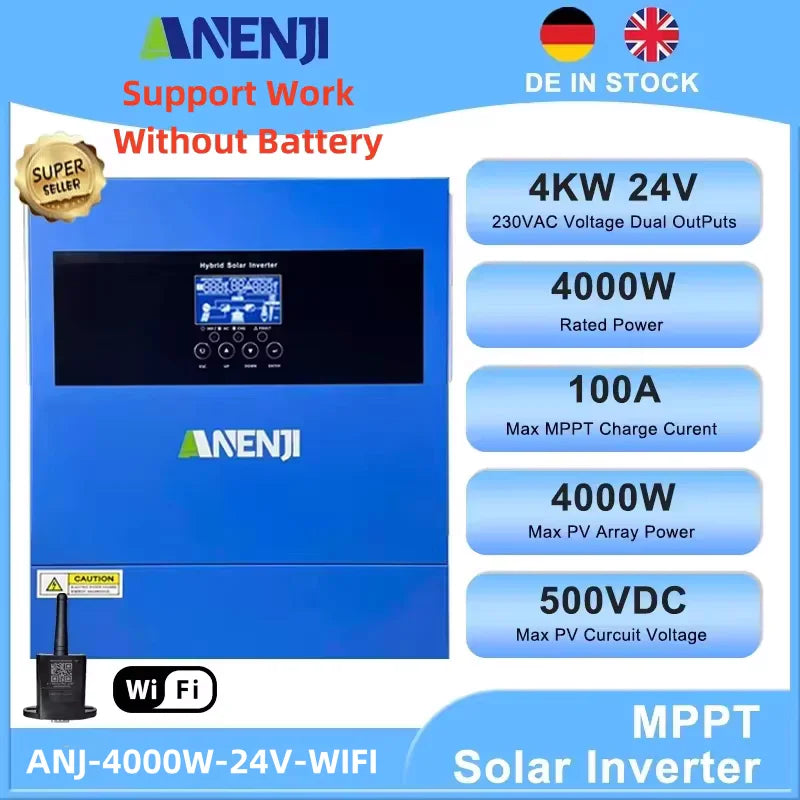

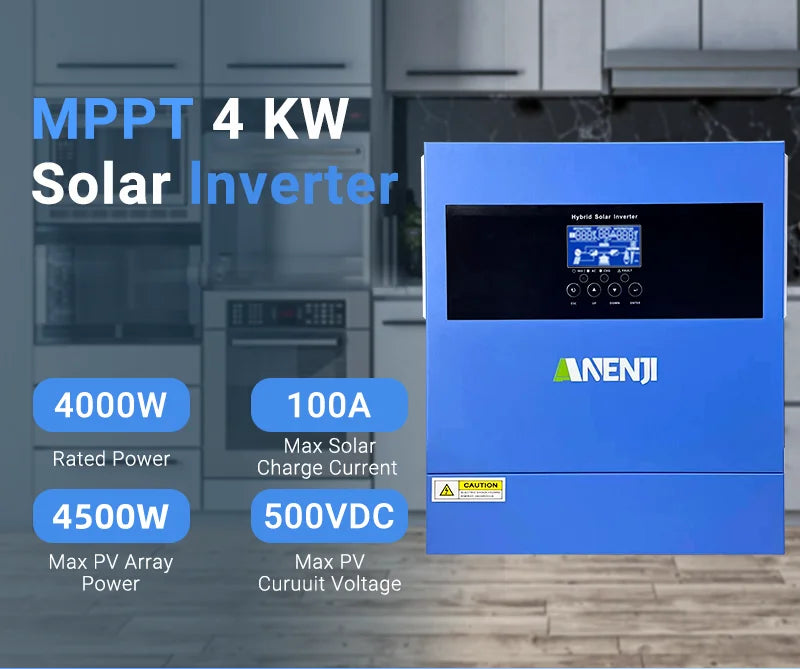

4KW 24V Hybrid Solar Inverter Features

(1) Pure Sine Wave

(2) Power Factor 1.0

(3) PV Input Voltage 60-500VDC

(4) Built-in MPPT100A

(5) Lithium Battery Activation

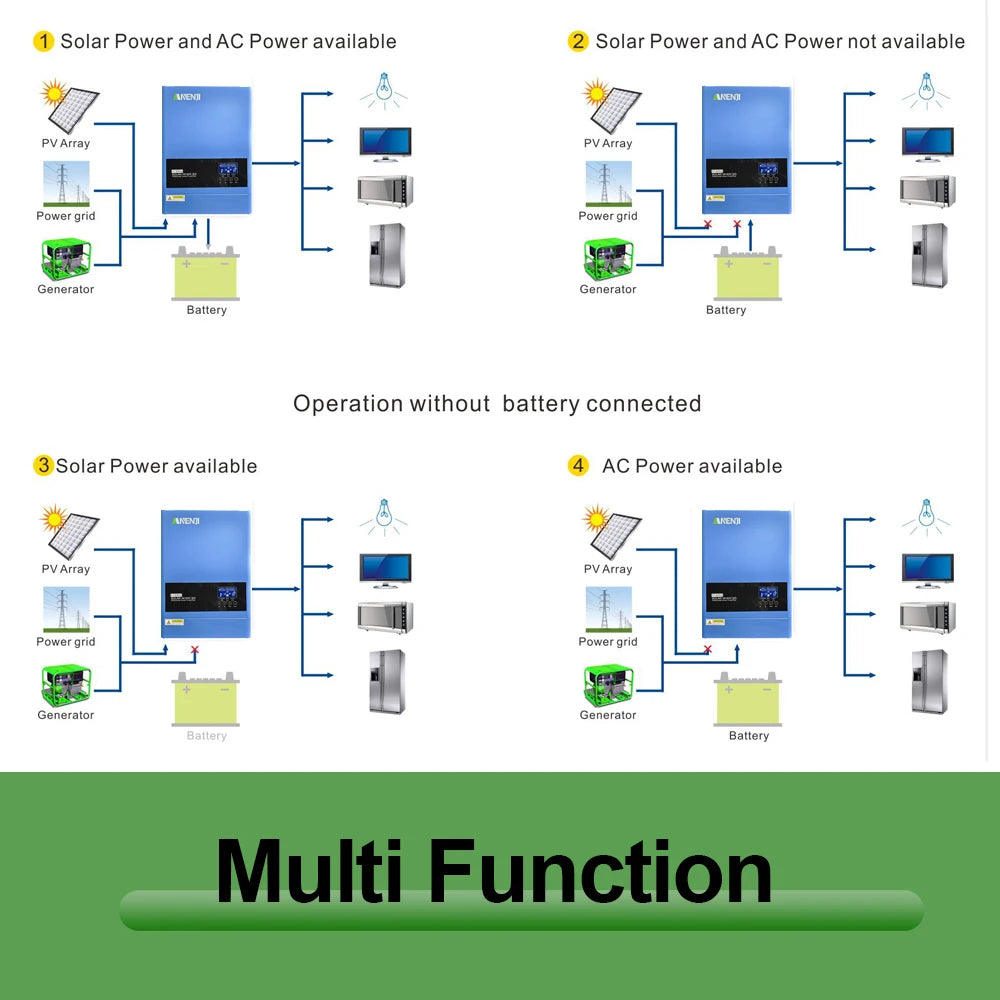

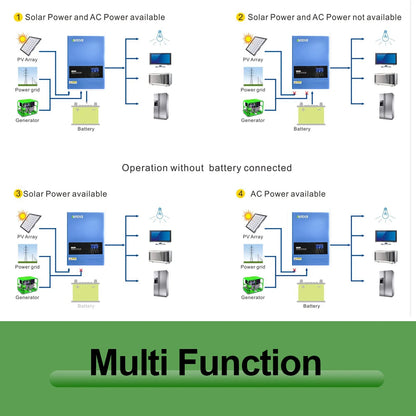

(6) Capable To Work Without Battery

(7) Detachable Dust Cover For Harsh Environment

(8) WiFi Remote Monitoring Optional

(9) Support Multiple Output Priority:UTL,SOL,SBU,SUB

(10) EQ function To Optimize Battery Performance And Extend Life Cycle

(11) Feed Into Grid

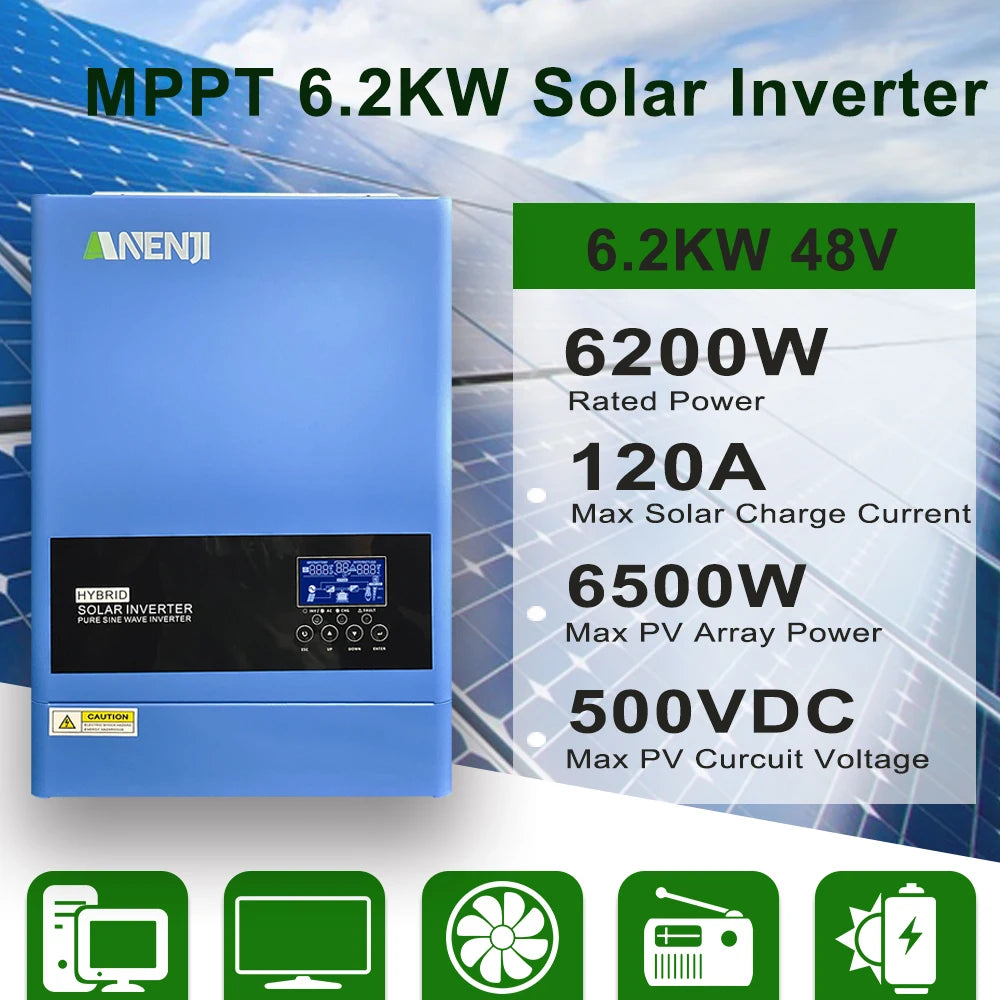

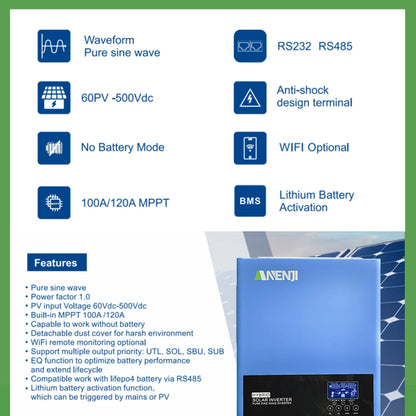

6.2KW 48V Hybrid Solar Inverter Features

(1) Pure Sine Wave

(2) Power Factor 1.0

(3) PVInput Voltage 60-500VDC

(4) Built-in MPPT 120A

(5) Capable To Work Without Battery

(6) Detachable Dust Cover For Harsh Environment

(7) WiFi Remote Monitoring Optional

(8) Support Multiple Output Priority: UTL, SOL,SBU, SUB

(9) EQ Function To Optimize Battery Performance And Extend Life Cycle

(10) Compatible Work With Lifepo4 Battery Via RS485

(11) Lithium Battery Activation Function,Which Can Be Triggered By Mains Or PV

(12) Feed Into Grid

(13) Support PACE PYLON Growwatt Communication Protocols BMS
